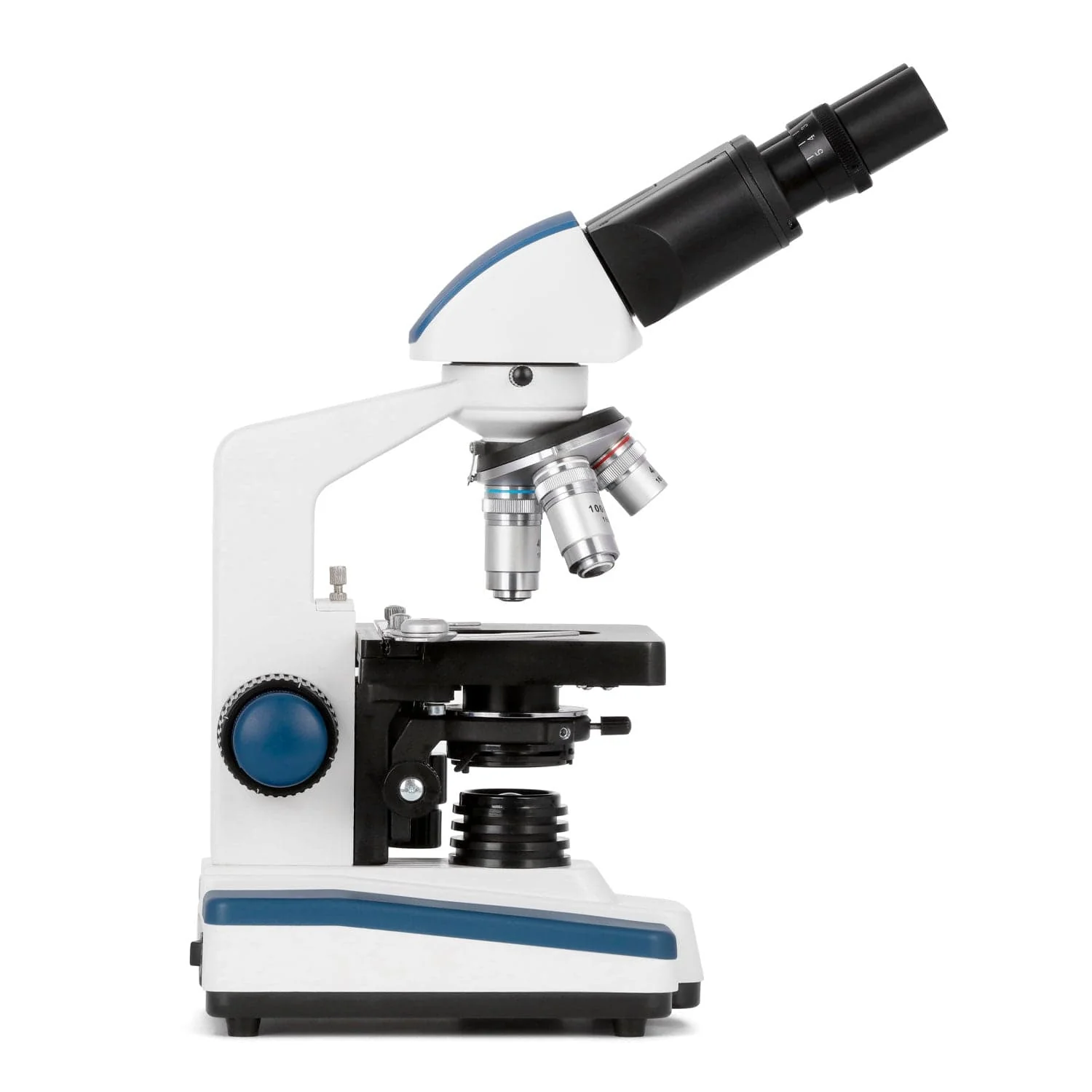

Our new binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf binocular head, double layer mechanical stage, course & fine focusing, LED illumination system, a microscope book, and a set of pre-cleaned cover-slips (100) and blank slides (50). The microscope offers eight magnification settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X. The book investigates the enormous variety of objects too small for the eye to see. Step-by-step diagrams show how to get the best from a microscope and how to make and keep slides. It covers different types of microscopes and there are plenty of exciting suggestions for projects which reveal the incredible detail of everyday objects. The slide set is included for users to make their own samples. This is an ideal microscope package for home school or for students, from elementary to college, professionals and hobbyists. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.

Features :

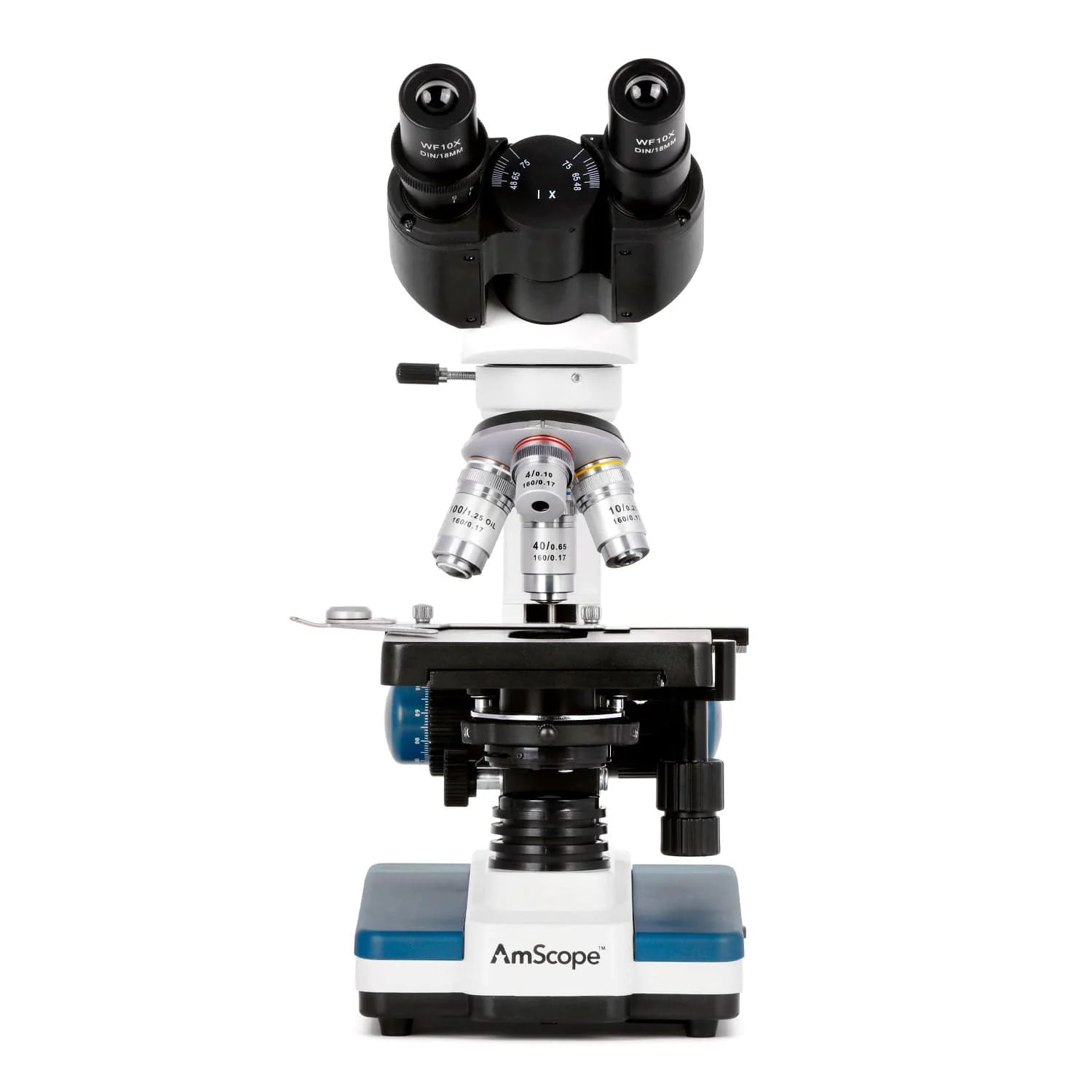

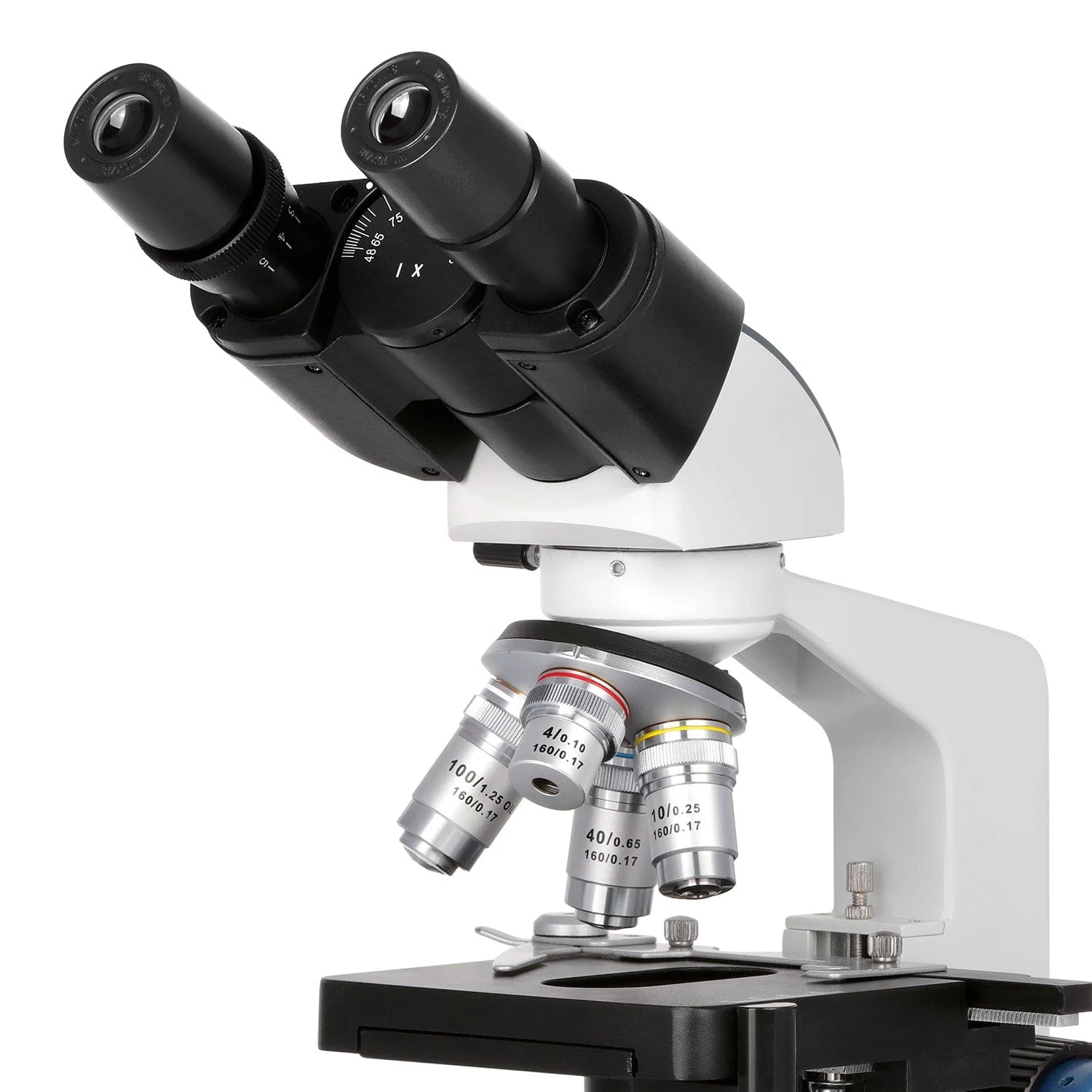

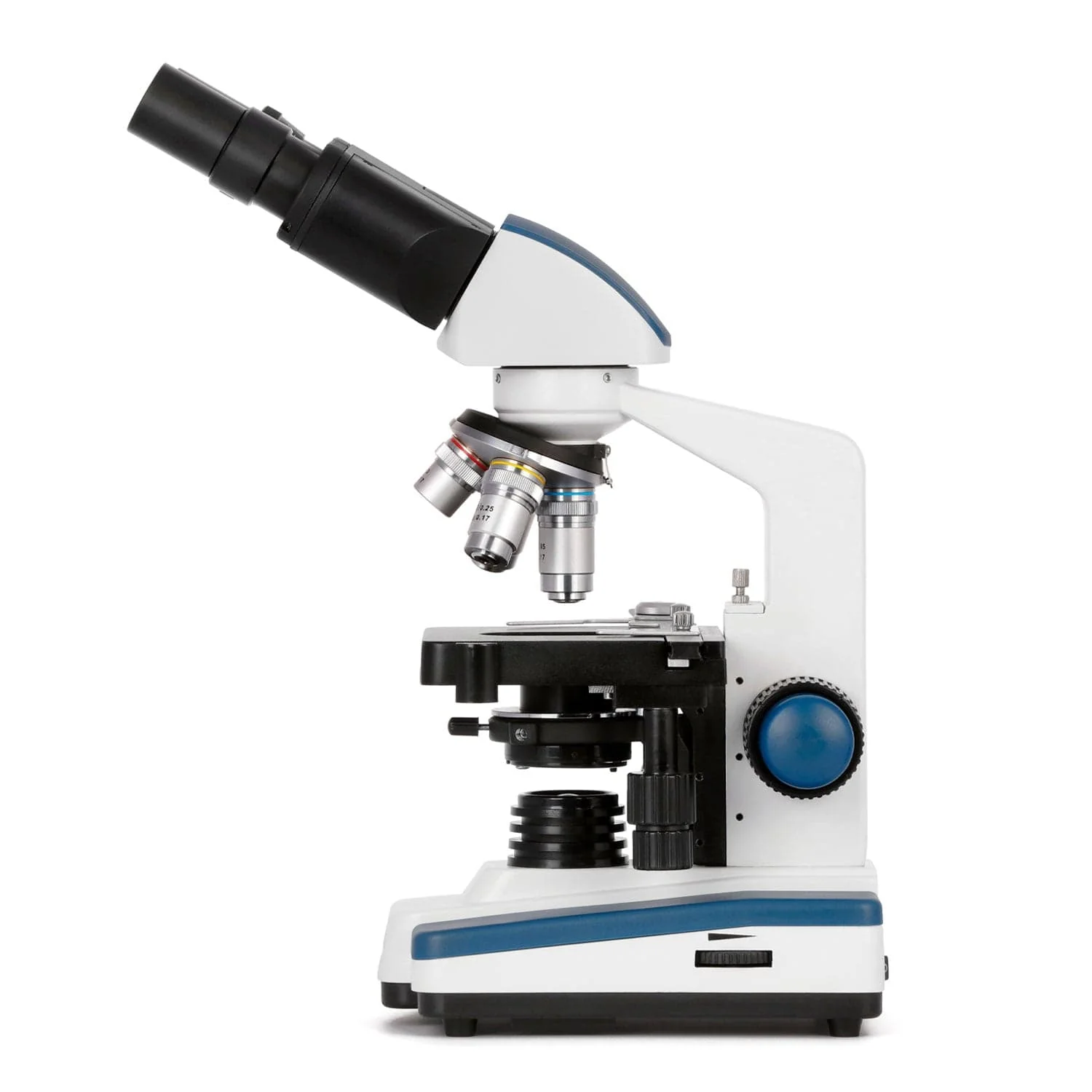

• 30 degree inclined 360 degree swiveling Siedentopf binocular head
• High quality precise optical glass elements
• Easy to attach a microscope camera or digital imager
• Eight magnification settings, 40X-80X-100X-200X-400X-800X-1000X-2000X

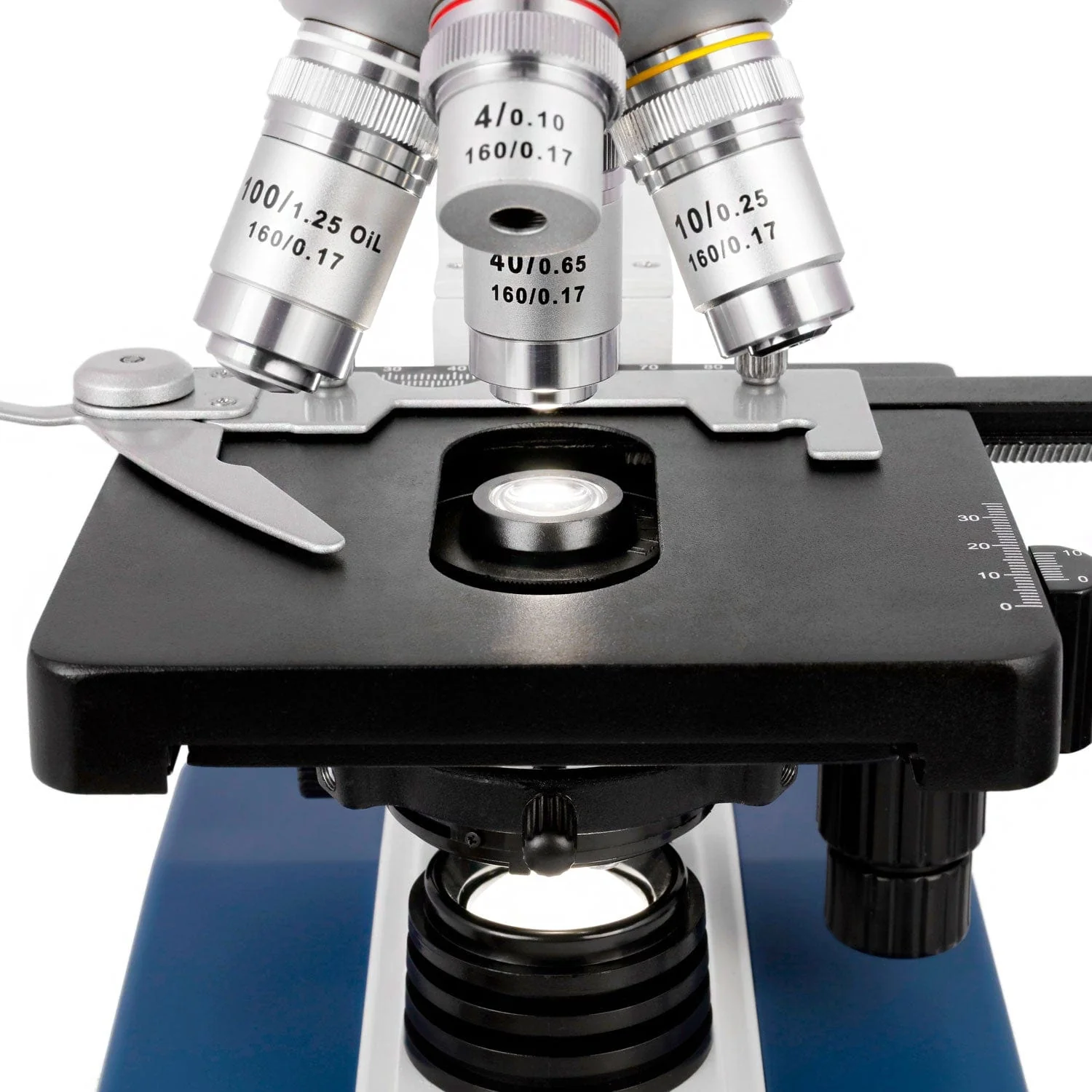

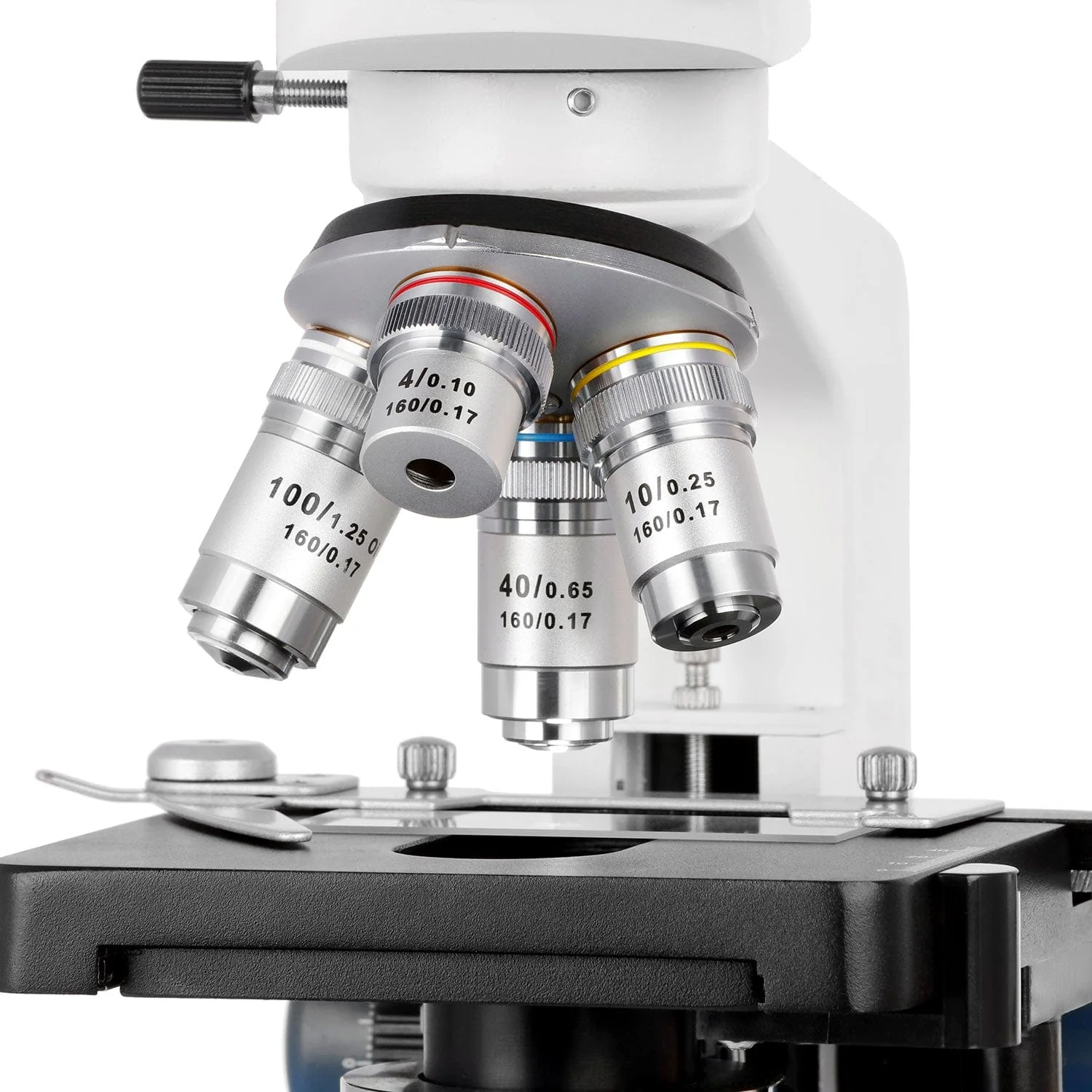

• Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
• Two pairs of widefield eyepieces: WF10X and WF20X
• Adjustable interpupillary distance
• Adjustable ocular diopter
• Variable intensity illumination
• Coaxial coarse and fine focus adjustment
• Focusing knobs are on both sides
• Stage upward moving lock protects objectives and slides
• Stain-resistant double layer mechanical stage
• NA1.25 Abbe Condenser with iris diaphragm & filters
• Rack and pinion adjustment condenser



Specifications :

• Eyepieces: widefield, WF10X and WF20X
• Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
• Head: 30 degree inclined 360 degree swiveling binocular
• Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)
• Adjustable ocular diopter
• Nosepiece: revolving quadruple
• Mechanical Stage: 3-D double layer
• - Size: 4-5/8" x 5" (118mm x 127mm)
• - Travel Range (X-Y): 70mm x 21mm
• Condenser: NA1.25 Abbe condenser with iris diaphragm
• Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
• Focusing: coaxial coarse & fine knobs on both sides

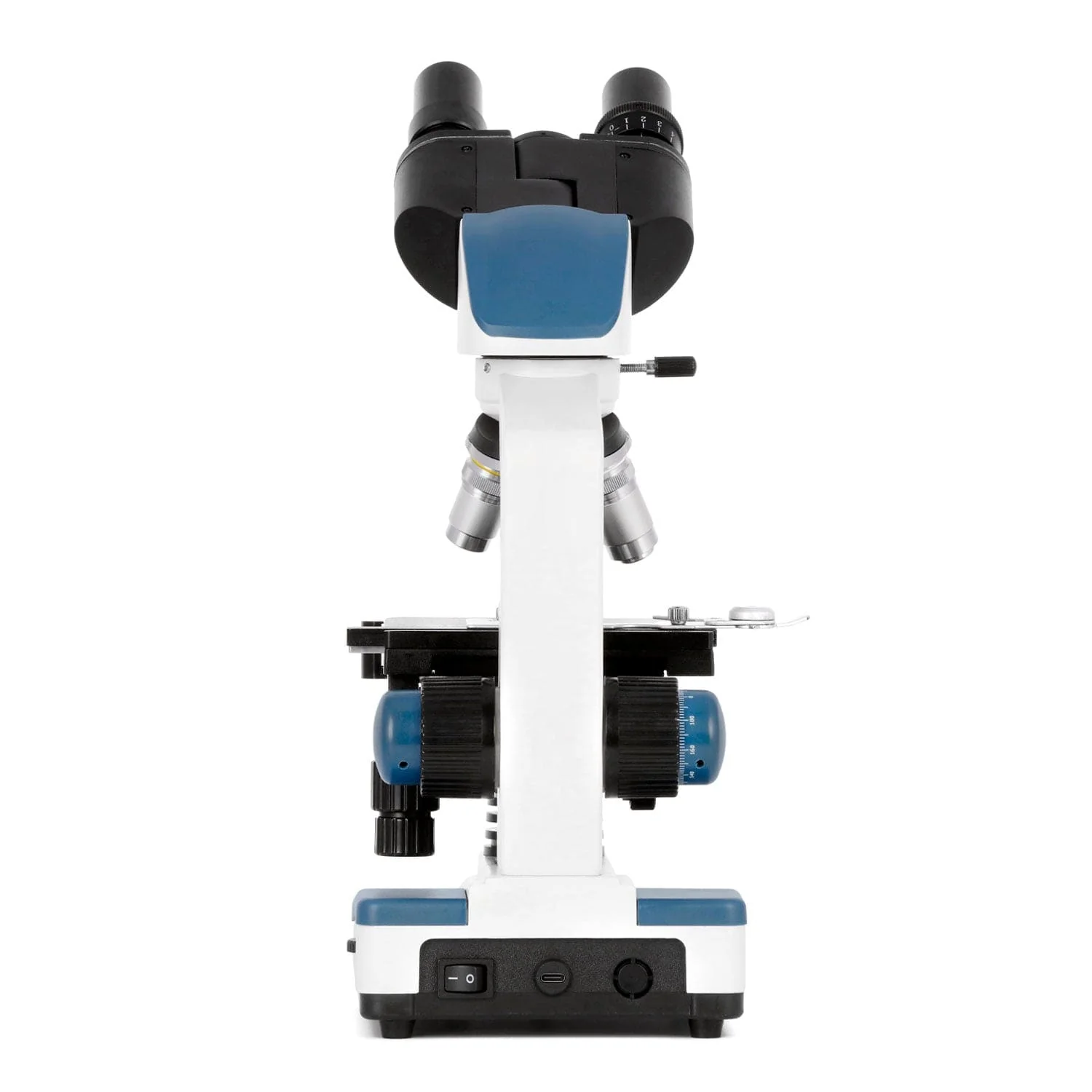

• Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
• Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)



Packing List :

• One Siedentopf Binocular Microscope Head
• One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
• Four DIN Standard Objectives, 4X, 10X, 40X and 100X
• One Pair of Widefield 10X Eyepieces
• One Pair of Widefield 20X Eyepieces

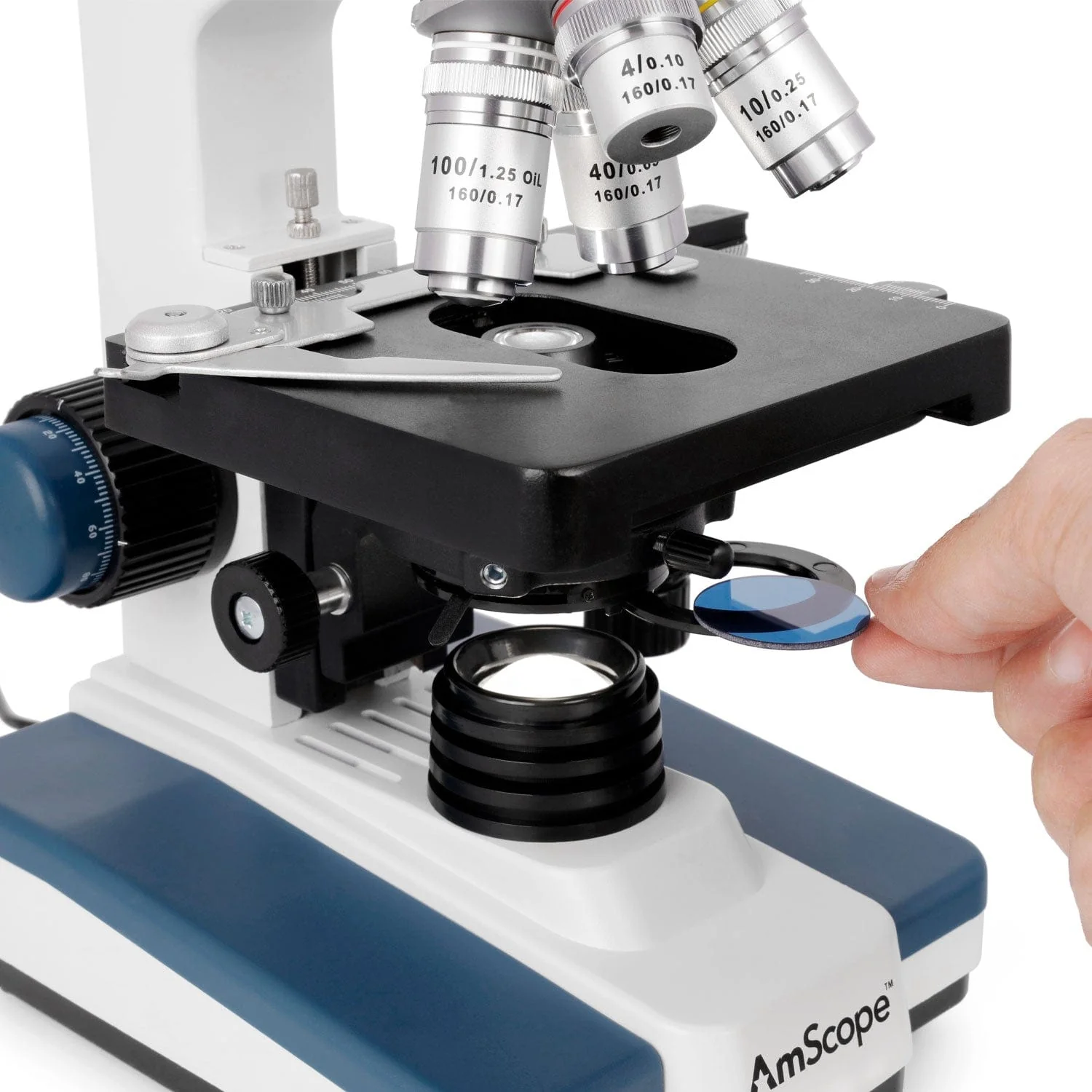

• One Blue Color Filter
• One Dust Cover
• Sample Immersion Oil
• User's Manual Download
• 50pc Pre-cleaned Slides and 100pc Coverslips
• One Microscope book: The World of The Microscope
• Shipping weight: 13 lbs
